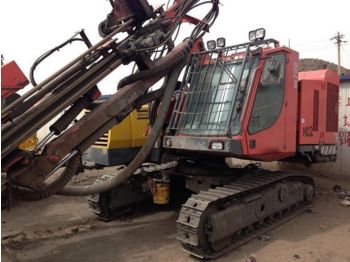

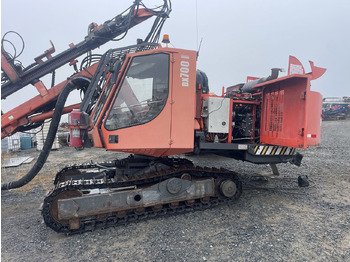

Máquina de perfuração SANDVIK DX700

Sandvik DX700 is a hydraulic, self-propelled, self-contained, crawler based surface drilling rig equipped with a cabin (F.O.P.S. and R.O.P.S.) and rod handling system.

Key specifications

Hole diameter

76-115 mm

( 3 -4 1/2 in)

Drill steel

45, 51 mm

(1 3/4 in, 2 in)

Weight

14800 kg (32628 lbs)

Dimensions

Width

2,5 m (8 ft)

Length

7.2/10.7 m (24/33 ft)

Heigth

3.6/3.2 m (12/11 ft)

Major components

Rock drill

HL 710, 19.5 kW (26.5 hp)

On-board compressor

8.1 cu. m/min/4-10 bar

(280 cfm/min/58-145 psi)

Dust collector

23 cu. m/min at 1000 mm vacuum H20

(810 cfm/min at 39 in vacuum H2O)

Engine

Cat C7

168 kW (225 hp)/ 2200 rpm

CAT C7.1 TIER4

168 kW (225 hp)/ 1800 rpm
